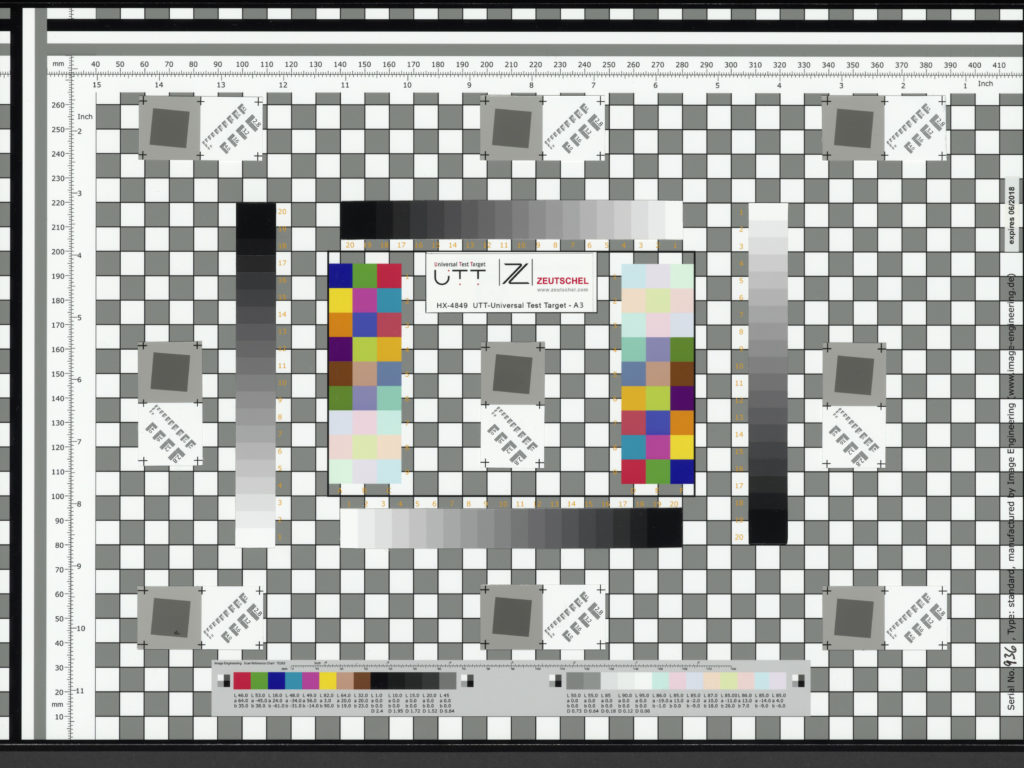

Universal Test Target

The Universal Test Target (UTT) is a single test target which is designed to provide insight into the complete image quality of all types of high end cameras and scanners following the current ISO-standards.

The Universal Test Target is available with various options in the DIN sizes A3 to A0. This makes the UTT suitable for all kinds of digitization projects, preservation and access, carried out by libraries, archives and museums.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

      View the OS QM Tool Software

      UTT saves time and improves quality

      UTT is an open standard

      OS QM-Tool software for better image quality.

      About

      Metamorfoze, the national program for the preservation of paper heritage, has formulated guidelines for preservation imaging established in September 2007. The goal of these guidelines is to digitise vulnerable library and archival materials in a structured and technically sound way. To achieve this goal a number of so-called technical targets were required. These targets were captured and analysed with special software to provide information on technical aspects such as OECF, MTF, noise and color accuracy. Metamorfoze is coordinated by the National Library of the Netherlands KB. With the UTT the National Library of the Netherlands, in cooperation with Image Engineering Dietmar Wueller IE and Fachverband für Multimediale Informationsverarbeitung e.V. FMI, has now designed a new test target in order to reduce the number of required targets from five to one.

      UTT saves time and improves quality
      The advantage of working with a single test target is primarily that it saves time in the digitization process. The cooperation of the National Library of the Netherlands and Image Engineering Dietmar Wueller with Fachverband für Multimediale Informationsverarbeitung e.v. also offers a great advantage. The FMI consists of manufacturers of digitization equipment and service providers for digitization. Never before have scanner manufacturers, digitization companies, libraries and archives used one and the same target to evaluate the technical quality of scanners and cameras. This will greatly improve the communication between the different parties and therefore also the technical quality of the digital files.

      UTT is an open standard
      The Universal Test Target will be available from September 1st 2009 and will first be produced by Image Engineering Dietmar Wueller (IE). But since the UTT is an open standard other manufacturers may join in the near future. On this website the technical specifications of the UTT are available. This enables a broad use of the target. Other manufacturers of technical targets and analysing software will be able to produce the UTT themselves and include it in their software packages. Besides this, the website provides a discussion platform on which the technical quality of the various types of digitisation equipment, software and test targets can be discussed.

      Helps adhere to Metamorfoze, FADGI and ISO with multiple testing criteria built into a single chart.

      Specification The UTT Test Chart measures:

      • Resolution Pattern
      • MTF determination
      • Channel registration measurement
      • Grey Scale
      • For OECF determination
      • For Noise measurement
      • Colour Patches
      • Verification of colour reproduction
      • Checker Board & Scales for Scale and Geometry Analysis
      • Each chart has a serial number and expiry date, recalibration is possible beyond this date.
