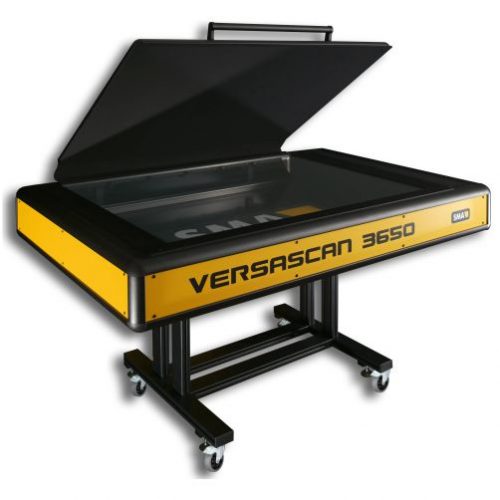

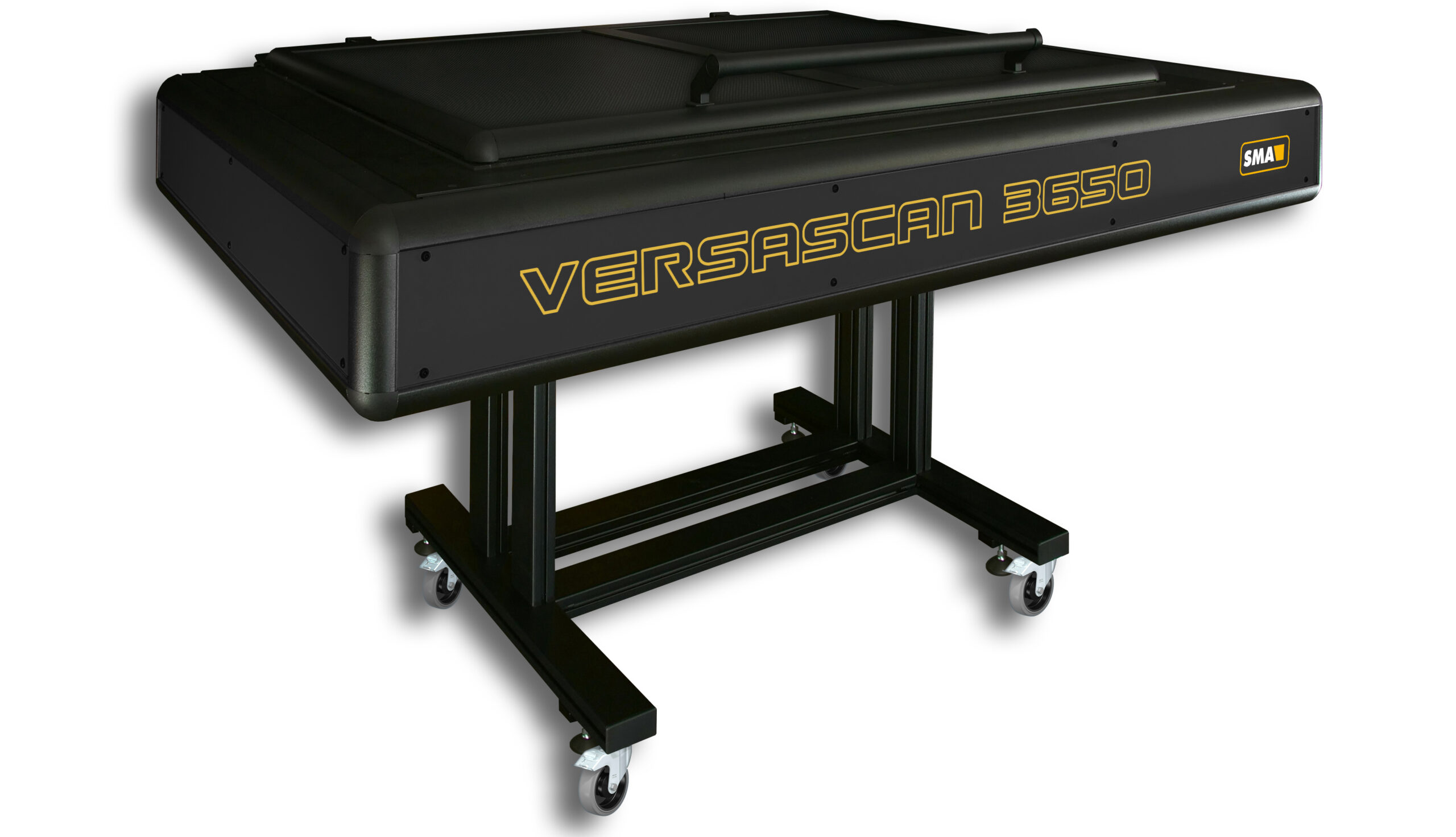

SMA Versascan 3650

Simply the Best A0 Flatbed Scanner in the World

The VERSASCAN 3650 is definitely the most popular A0 flatbed scanner in the market.

The VERSASCAN 3650 A0 flatbed scanner comes with V3D – a new scanning technology which allows users to scan many different types of originals. It offers the capability of digitizing structured surfaces such as wood, rubber, plastic, fabrics, carpet and many more types of material. Finally, light reflecting items such as coins, seals and metal prints can be captured at the highest quality.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

      Very high optical resolution

      Optical resolution of 600 ppi and 48 bit colour depth

      Virtual 3D technology (V3D)

      V3D images offer perfect reproductions of nearly any structured surface.

      A0 Scan Size

      A scanning range of 914 x 1270 mm (36 x 50 inches).

      Lightning fast scanning speed

      Operating the VERSASCAN 3650 A0 flatbed scanner is as easy as operating a photo copier. Open the lid, place the document, close the lid and hit the scan button – that's it!

      Previous Generation

      300 ppi colour: 12 seconds

      600 ppi colour: 24 seconds

      New Generation – 5

      300 ppi colour: 8 seconds

      600 ppi colour: 8 seconds

      About

      What is Visual 3D Scanning?

      Visual 3D is a newly designed scanning technology that produces results that look like 3D. The process is bases on different lighting scenarios where the same area is being captured with several different lighting angles on the fly. The software then combines the separate images into one image. This approach is unique and raises the outstanding image quality of the SMA large format flatbed scanner to another level.

      If required, the V3D function can be disabled and regular 2D scanning can be performed.

      Operating the VERSASCAN 3650

      The size and mobility of VERSASCAN 3650 makes it ideal for most applications. VERSASCAN 3650 is a household name in archives, libraries and the private industry around the world. It features very high optical resolution and high productivity at the same time. The VERSASCAN 3650 A0 flatbed scanner comes with V3D – a new scanning technology which allows users to scan many different types of originals. It offers the capability of digitizing structured surfaces such as wood, rubber, plastic, fabrics, carpet and many more types of material. Finally, light reflecting items such as coins, seals and metal prints can be captured at the highest quality.

      All flatbed scanners are suitable for scanning large and fragile originals that do not require a book cradle or cannot be handled by a feeder. Due to its newly designed roll-away mount it is easy to move the scanners around – regardless of their size. Simply unlock the flatbed scanner, fold it up and off you go. Alternatively a motorized height adjustment is available in order to accomodate different working positions.

      Specifications

      Scanning Range

      1270 x 915 mm
      (50 x 36 inch)

      Maximum Resolution

      1200 ppi

      Scan Speed

      300 ppi color:
      8 seconds
      600 ppi color:
      8 seconds

      Light Source

      White LEDs, classified
      IEC 60825-1: class 1
      IR and UV free

      Colour Depth

      Color 48/24 bit
      Color 48/8 bit,
      Greyscale16/8 bit

      Interface

      GBit Network

      Dimensions And Weight

      W: 180 cm
      D: 120 cm
      H: 95 cm
      110 kg
      (without PC and Monitor)

      Options

      Motorized height
      adjustment
      TV stand for large
      format monitor
      Lid with white coating
      for transparent originals

      Included Software

      Batch Scan Wizard
      Other Software
      optional available

      Book a demo with the SMA Versascan 3650
