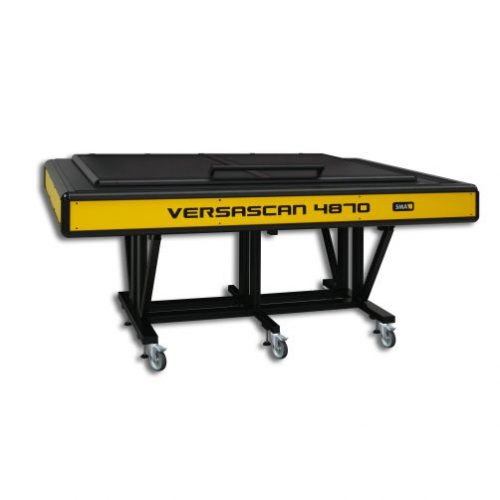

SMA Double A0 Flatbed Scanner Versascan 4870

Designed to digitize wider originals.

The VERSASCAN 4870 is the other 2A0 flatbed scanner in the SMA family of large format flatbed scanners.

The scanning range is different from the VERSASCAN 36100 but also double A0. The VERSASCAN 4870 was designed to digitize wider originals. Renowned users around the world utilize the VERSASCAN 4870 to fulfill their special needs.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

      Virtual 3D technology (V3D)

      V3D images offer perfect reproductions of nearly any structured surface. In addition it increases the depth of field significantly.

      Very high optical resolution

      Optical resolution of 600 ppi over the entire scanning range with 48 bit colour depth.

      Scanning range above 2A0

      Scanning range 1219 x 1778 mm (48 x 70 inches)

      Lightning Fast

      At 300dpi the Versascan takes only 11 seconds to capture double A0+ size material.

      Previous Generation

      300 ppi colour: 18 seconds

      600 ppi colour: 36 seconds

      New Generation – 5

      300 ppi colour: 11 seconds

      600 ppi colour: 11 seconds

      About

      What is Visual 3D Scanning?

      Visual 3D is a newly designed scanning technology that produces results that look like 3D. The process is bases on different lighting scenarios where the same area is being captured with several different lighting angles on the fly. The software then combines the separate images into one image.

      As a result V3D images offer perfect reproductions of nearly any structured surface. In addition it increased the depth of field significantly. This approach is unique and raises the outstanding image quality of the SMA large format flatbed scanner to another level.

      Absolutely Unique Large Format Flatbed Scanner

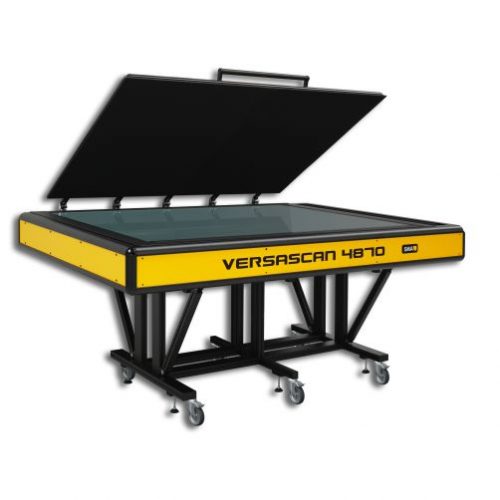

      Operating the VERSASCAN 4870 2A0 flatbed scanner is as easy as operating a photo copier. Open the lid, place the document, close the lid and hit the scan button – that's it! Alternatively the scanner can conveniently be operated via foot switch.

      The large format flatbed scanner is suitable for scanning large and fragile originals that do not require a book cradle or cannot be handled by a feeder. Due to its newly designed roll-away mount it is easy to move the scanners around – regardless of its size. Simply unlock the flatbed scanner, fold it up and off you go. Alternatively a motorised height adjustment is available in order to accommodate users of different sizes.

      Specifications

      Scanning Range

      1778 x 1219 mm
      (70 x 48 inch)

      Maximum Resolution

      1200 ppi

      Scan Speed

      300 ppi color:
      11 seconds
      600 ppi color:
      11 seconds

      Light Source

      White LEDs, classified
      IEC 60825-1: class 1
      IR and UV free

      Colour Depth

      Color 48/24 bit
      Color 48/8 bit,
      Greyscale16/8 bit

      Interface

      GBit Network

      Dimensions And Weight

      W: 228 cm
      D: 152 cm
      H: 104 cm
      130 kg
      (without PC and Monitor)

      Options

      Motorized height
      adjustment
      TV stand for large
      format monitor
      Lid with white coating
      for transparent originals

      Included Software

      Batch Scan Wizard
      Other Software
      optional available

      Book a demo with the SMA Versascan 4870
