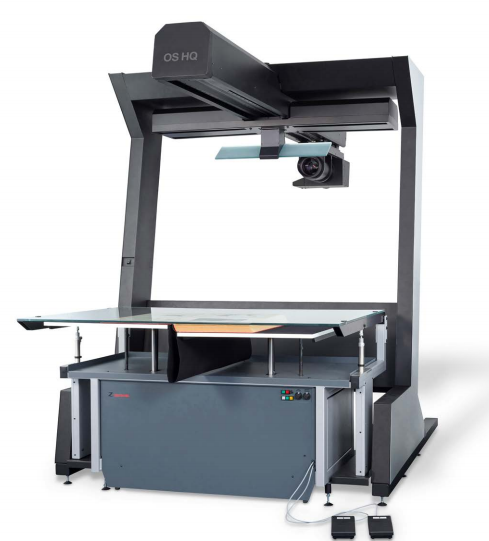

Zeutschel OS HQ

Sharp, low-noise, high-contrast images, which reflect even the finest details true to the original

The unique image quality of the OS HQ is based on the perfect interplay of especially high-quality technical components. Thus, the image quality of the OS HQ exeeds the requirements of all common digitalization standards, e.g. ISO 19264-1, Metamorfoze Full or FADGI 4 Star event when scanning formats larger than A0. The scanning system features a completely self-developed exclusive GigaPixel camera system based on CMOS technology. Compared to the OS Q series the OS HQ works with a twice as big camera sensor.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

      A1 Book Cradle

      OT 180 H 35 with black book plates and self-opening glass-plate

      Mechanically Adjustable

      High depth of focus – mechanically adjustable shutter

      Interchangeable

      Wide range of interchangeable imaging systems

      • Modular, universal system for all digitization tasks
      • Roll-in/Roll-out stand unit for easy interchanging of all document tables (see Technical Data)
      • Product advantages
      • RGB line sensor
        (3-channel, CMOS technology)
      • Resolution of up to 1000 ppi
      • Fulfills ISO 19264-1 Level A, Metamorfoze Full
        and FADGI 4 Star
      • Internal image processing with 96 bit depth
      • Data output in 48 bit/24 bit color and
        16 bit/8 bit degree as well as 1 Bit b/w
      • True RGB capture on each pixel
        (no color interpolation)
      • Color rendering index of LED lighting CRI >97
      • True parallel scanning
      • Camera Link interface for fastest image transfer
      • Optical zoom Variable lighting times and
        mechanical aperture settings
      • Copyboard systems for a wide range of
        formats
      • OmniScan software with 48 bit data output
      • Focused line lighting for glare-free operation
      • Highest scanning speed
      • Perfect Book – 3D scan technology for perfect
        book curve correction
      • Parallel scanning and saving process based
        on 64 bit technology and multi-threading
      • Scanning in both directions, forwards and
        backwards (bidirectional)
      • High productivity based on ROI scan function
        (limitation of the area to be scanned)
      • Colour rendering corresponds to the original
      • No UV/IR radiation
      • No reflections with high-shine originals
      • Ergonomic work method with or without
        glass plate
