The motorised standard book cradle has a range of 35 cm, can handle books up to 50 kg weight and is equipped with adjustable pressure sensors. It can be pulled out to make the workflow easier for the operator.
Click below to download the SMA Generation 5 brochure.
The motorised standard book cradle has a range of 35 cm. Alternatively there is a 50 cm book cradle available.

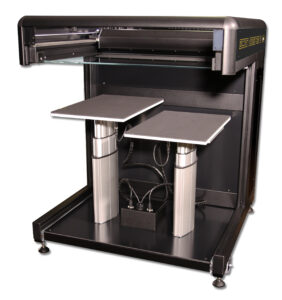

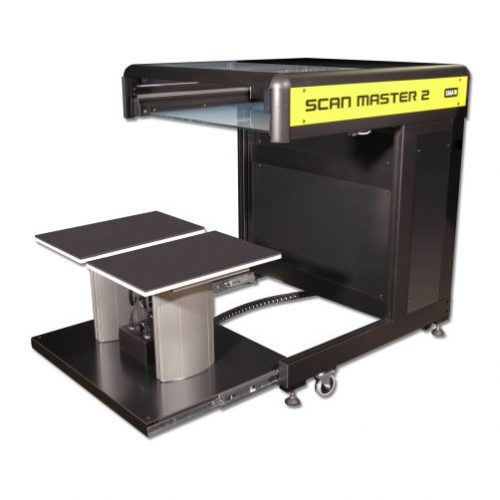

The Scan Master 2 captures an area of 635 x 470mm (25 x 18.5 inch)
The Scan Master 2 captures originals at a resolution of up to 1200 dpi over the entire scanning range
Features like manual or automatic opening of the glass plate, vacuum table, device to scan transparent originals and an attachment to scan v-shaped books are optional available.
The glass plate of the Scan Master 2 book scanner can be removed without the need of any tools.
The Scan Master 2 book scanner can be operated independent from ambient light and achieves a resolution of up to 1200 dpi. Another unique feature is that the Scan Master 2 book scanner can be upgraded to robotic scanning.
Motorised cradle 35cm
635 x 508 mm
(25 x 20 inch)
1200 ppi
300 ppi color:
3 seconds
600 ppi color:
3 seconds
Manual cradle 18cm
