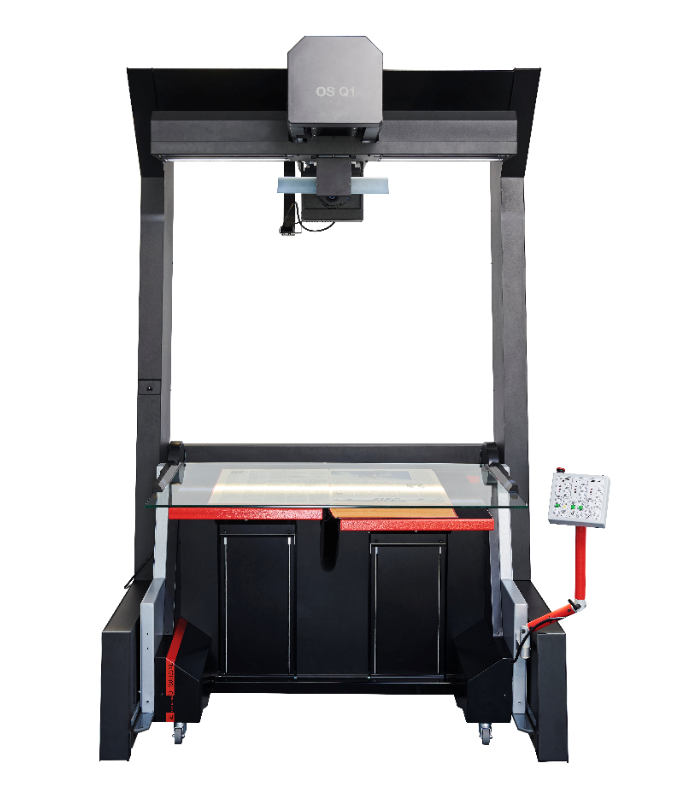

Zeutschel OS Q1

The OS Q1: Book scanner for a new dimension of quality…

OS Q1 produces image quality that meets the highest requirements of the ISO 19264, Metamorfoze and FADGI digitization standards.The scanning system is equipped with a state-of-the art Giga pixel camera and a large CMOS sensor. The camera is characterised by a high dynamic range and the reproduction of the finest gradations. The results are sharp, with low-noise and high-contrast images that reproduce even the finest details.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest news and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these advertisements, you can unsubscribe at any time.

      Copyboard System

      Proven copyboard systems for process efficiency for a wide range of formats.

      Fast Image Transfer

      Camera link interface for fastest image transfer

      Interchangeable

      Interchangeable lenses including macro lens

      • Modular, universal system for all digitisation tasks
      • Product advantages
        RGB line sensor (3-channel, CMOS technology)
      • Resolution of up to 600 ppi
      • Fulfills ISO 19264 / Quality Level A, Full Metamorfoze and FADGI****
      • Internal image processing with 96 bit depth
      • Data output in 48 bit/24 bit colour and 16 bit/8 bit degree
      • True RGB capture on each pixel (no colour interpolation)
      • Colour rendering index of LED lighting
      • True parallel scanning
      • Camera link interface for fastest image transfer zoom (optional)
      • Variable lighting times and aperture settings
      • Interchangeable lenses including macro lens
      • Imaging systems for a wide range of formats
      • OmniScan software with 48 bit data output
      • Focused line lighting for glare-free operation
      • Fastest scanning speed
      • Perfect Book – 3D scan technology for perfect book fold correction
      • Parallel scanning and saving process based on 64 bit technology and multi-threading
      • Scanning in both directions, forwards and backwards
      • High productivity based on ROI scan function (limitation of the area to be scanned)
      • Colour rendering corresponds to the original
      • No UV/IR radiation
      • No reflections with high-shine originals
      • Ergonomic work method with or without glass plate
      Book a demo with the OS Q1
