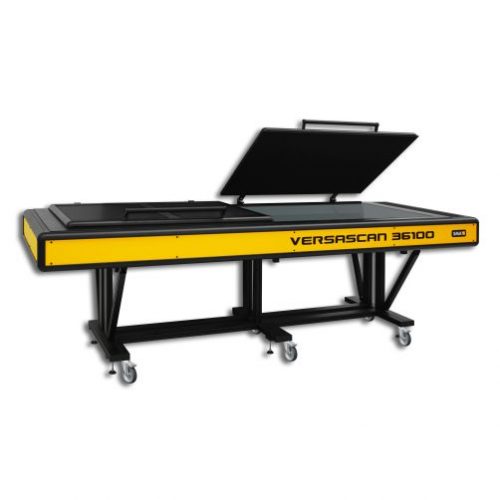

SMA Double A0 Flatbed Scanner VERSASCAN 36100

A true XXL Flatbed Scanner

The VERSASCAN 36100 is a unique double A0 flatbed scanner with an enormous scanning length of 2540 mm. It is ideal for scanning very long oversize originals.

Light reflecting items such as coins, seals and metal prints can be captured at the highest quality on the large format flatbed scanner. The V3D technology presents new opportunities as it can be applied to materials outside the normal archive and library world.

Download Brochure

Enter your details to download the brochure.

    Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest newsletter and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these messages, you can unsubscribe at any time.

    Make An Enquiry

      Please tick this box if you wish to join our mailing list. From time to time we would like to contact you with our latest newsletter and product offers. We will never pass your data onto any third parties and promise to keep your details safe. If you no longer want to receive these messages, you can unsubscribe at any time.

      Virtual 3D technology (V3D)

      V3D images offer perfect reproductions of nearly any structured surface. In addition it increases the depth of field significantly.

      Very high optical resolution

      Optical resolution of 600 ppi over the entire scanning range with 48 bit colour depth.

      Scanning range above 2A0

      Scanning range 914 x 2540 mm (36 x 100 inches)

      Lightning Fast

      At 300dpi the Versascan takes only 16 seconds to capture Double A0 size material.

      Previous Generation

      300 ppi colour: 24 seconds

      600 ppi colour: 48 seconds

      New Generation – 5

      300 ppi colour: 16 seconds

      600 ppi colour: 16 seconds

      About

      What is Visual 3D Scanning?

      Visual 3D is a newly designed scanning technology that produces results that look like 3D. The process is bases on different lighting scenarios where the same area is being captured with several different lighting angles on the fly. The software then combines the separate images into one image. This approach is unique and raises the outstanding image quality of the SMA large format flatbed scanner to another level.

      If required, the V3D function can be disabled and regular 2D scanning can be performed.

      Operating the VERSASCAN 36100

      Operating the VERSASCAN 36100 double A0 flatbed scanner is as easy as operating a photo copier. Open the lid, place the document, close the lid and hit the scan button – that's it! Alternatively the scanner can conveniently be operated via foot switch

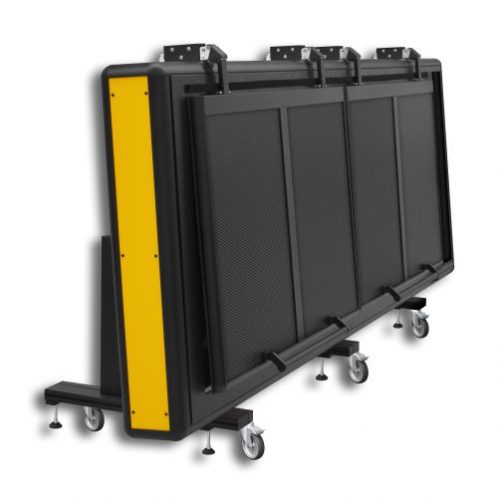

      The large format flatbed scanner is suitable for scanning large and fragile originals that do not require a book cradle or cannot be handled by a feeder. Due to its newly designed roll-away mount it is easy to move the scanners around – regardless of its size. Simply unlock the flatbed scanner, fold it up and off you go. Alternatively a motorised height adjustment is available in order to accommodate users of different sizes.

      Specifications

      Scanning Range

      2540 x 915 mm
      (100 x 36 inch)

      Maximum Resolution

      1200 ppi

      Scan Speed

      300 ppi color:
      16 seconds
      600 ppi color:
      16 seconds

      Light Source

      White LEDs, classified
      IEC 60825-1: class 1
      IR and UV free

      Colour Depth

      Color 48/24 bit
      Color 48/8 bit,
      Greyscale16/8 bit

      Interface

      GBit Network

      Dimensions And Weight

      W: 305 cm
      D: 120 cm
      H: 100 cm
      150 kg
      (without PC and Monitor)

      Options

      Motorized height
      adjustment
      TV stand for large
      format monitor
      Lid with white coating
      for transparent originals

      Included Software

      Batch Scan Wizard
      Other Software
      optional available

      Book a demo with the SMA Versascan 36100
