With more and more organisations in the UK & Ireland becoming aware of cultural heritage standards such as Metamorfoze, FADGI and ISO, the requirement to understand the parameters and have the ability to test for compliance, increases. In order that Genus is prepared to answer questions that clients may have and have the ability to calibrate equipment for standards compliance, our Technician Simon Bloomfield has just spent a few days at Zeutschel’s headquarters in Tübingen Germany.
Simon has been trained on the Zeutschel QM Tool, understanding the UTT test chart and how to create testing parameters for standards compliance. The course was not only attended by Zeutschel distributors but also by customers wanting to learn more about the QM Tool. The training was delivered by Volker Jansen, who is mentioned in the acknowledgments for the Metamorfoze Imaging standard.
If you are an owner of Zeutschel equipment and wish to attend this course in the future, please register an interest with Genus and we will make you aware of dates as they become available.

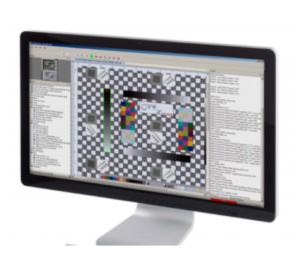

The QM Tool tests for the following parameters and along with UTT test charts is available from Genus in the UK & Ireland.
Noise according to ISO 15739 and ISO 21550
Test as standard deviation in L* or RGB colour space
Colour channel selective analysis
OECF according to ISO 14525 and ISO 21550
Analysis selectable according to CIE 1976, 1994, 2000, 2000 SL1
Im L*a*b* or converted into any RGB target colour space
Analysis of dC, da*b* and dE in grey scale with separately
adjustable limit levels
Analysis of gain modulation
MTF according to ISO 12233 and ISO 16067-1
MTF 10
MTF 50
Sampling Efficiency
Channel registration
Maximum modulation
Geometry according to ISO 17850
Ratio of claimed and obtained sampling rate
Distortion in percent for X / Y
Barrel or pin cushion-distortion
Colour reproduction Delta E according to CIE 15 and ISO 14524
Adjustable analysis according to methods
CIE 1976, 1994, 2000, 2000 SL1
Detection of mean dE
Detection of max. dE
Homogeneity according to ISO 17957
Determination of the deviation from the mean value
Setting of a corridor
Test in L* or RGB luminance or colour channel, selective
Test of colour gradient over the scan area ( da*b* over field
In addition there is a software plugin for the latest Zeutschel OS Q scanner, range for compliance clarification on the fly, with a visual signal for the operator and the information being written to the image file header – confirming and recording your compliance with the relevant standard level.
